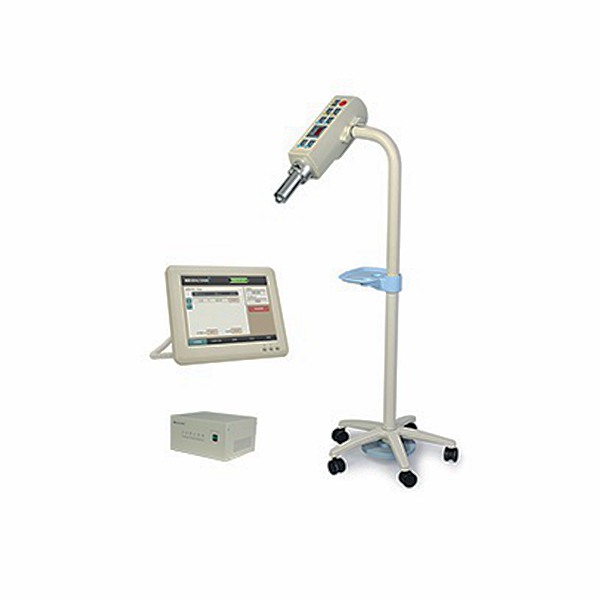

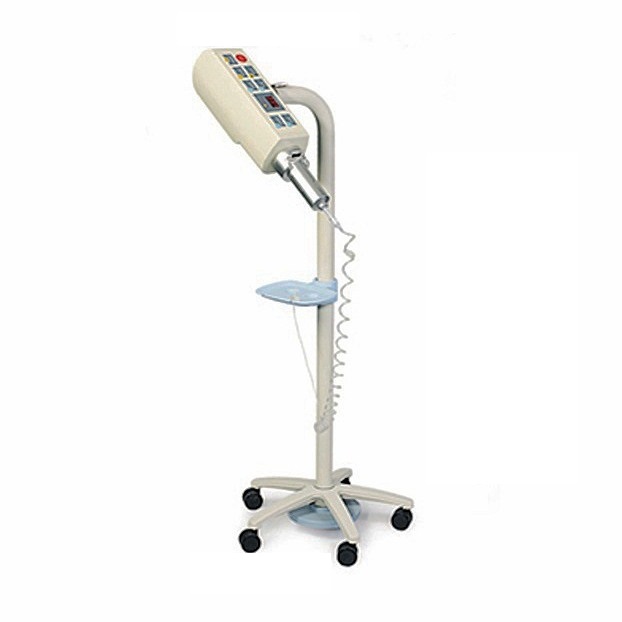

Product Name: 100ml DSA Peripheral Blood-vessel Injector, Automatic angiography gastrointestinal C-arm CT enhancement scan contrast agent injection system Zenith D10
Ref No. Zenith D10
Type. DSA Single Head 100ml, Floor Pededal
Feature:
It is suitable for injection of contrastagent in gastrointestinal machine, small and medium-sized C-arm peripheralangiography and CT enhancement scan.
Characteristic:
● The performance parameters are tailor-made for peripheralangiography, the product has strong application pertinence, compact andreasonable structure, and is the most suitable high-pressure syringe fordigital gastrointestinal machine and small C-arm.
●Light and powerful injection arm, concentrated very convenient syringeinstallation, optimized control key design and other advantages, so that youcan quickly and efficiently complete the suction, air exhaust and testinjection operations.
●Remote operation controller provides user-friendly operation interface. Eye-catchingand comprehensive data and status indicators, so that you can easily grasp thestatus of the entire system;
Specification:
Syringe Capacity：100ml
Flow Rate programmable:0.1 to 20.0 ml/sec
Step Size: 0.1ml
pressure Limits programmable：100 to 600psi(690 to 4140Kpa), Step size 1psi (1Kpa)
Injection Capabilities：1 to 8 phases
Item | Description |
Electrical Requirements | a.c.220V, 50Hz, 500VA |
Console | Color Touch Screen |
Operation Interface | Selectable in English, French, German and Chinese |
Flow Rate | 0.1 to 20 ml/sec. in 0.1 ml/sec. increments |
Volume | 0.1 ml to max. syringe capacity |
Rise Time | 0.1~1.0 sec., in 0.1 ml increments |
Syringe Capacity | 100ml |
